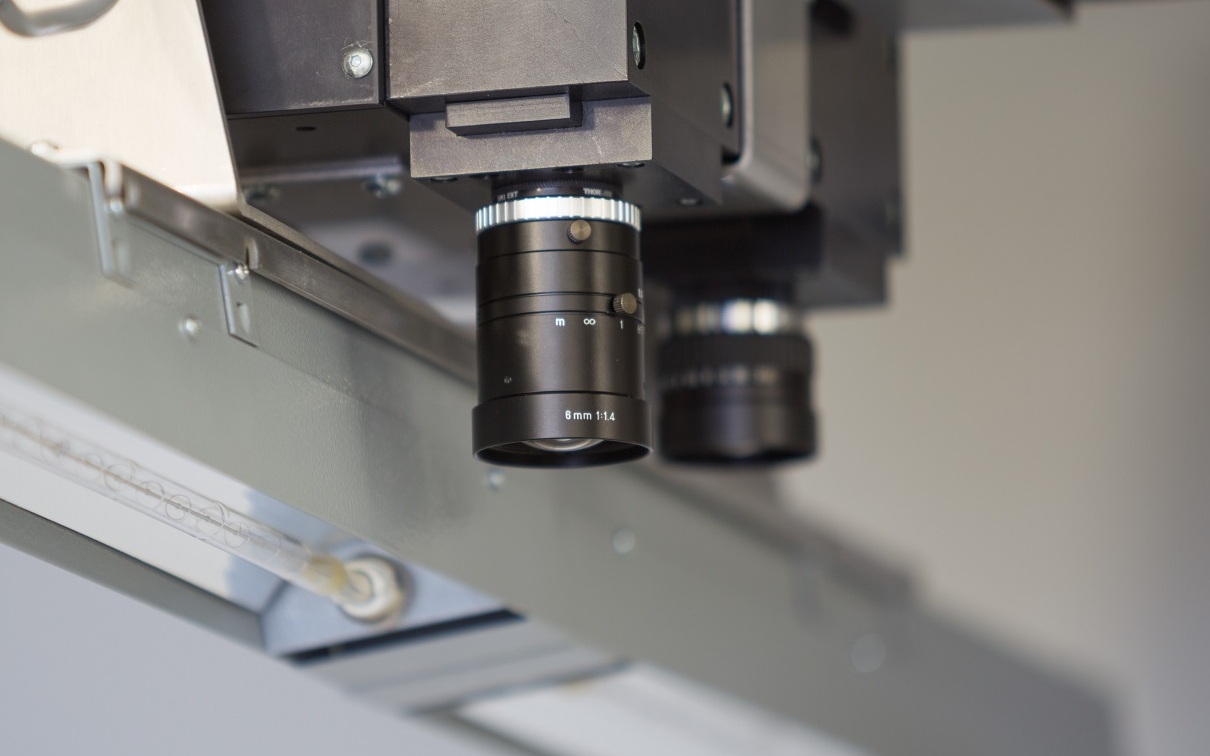

SWIR2200
See beneath the surface...
| Imaging and optical data | Parameters |
|---|---|
| Spectral range | 1000 - 2200 nm |
| Band size | 1200nm |
| Entrance slit width | 25 µm |
| Dispersion/pixel | 3.8 nm/pixel |
| Wavelength resolution FWHM | 4.0 nm |
| Spatial resolution | 256 pixels |
| Spectral resolution | 320 pixels |
| Image frequency | 50 fps | Connection |
| Control | GigE |
| Data | GigE |
| Power | 12V | Sensor |
| Type | InGaAs |
| Size | 9.6x7.68mm |
| Resolution | 320 x 256 pixels |
| Bit depth | 16 bit |
| Pixel size | 30 µm |
| Lens | |
| F-number | 1.4 |
| View angle | 63° |
| Focal length | 8 mm |
| Focus | manual |
| Physical data | |
| Weight | 5 kg |
| Camera size (L × W × H) | 390 × 108 × 265 mm |
| Operating conditions | |
| Temperature | 10° to 40°C |
| Humidity | 20 to 80% (no condensation) |
