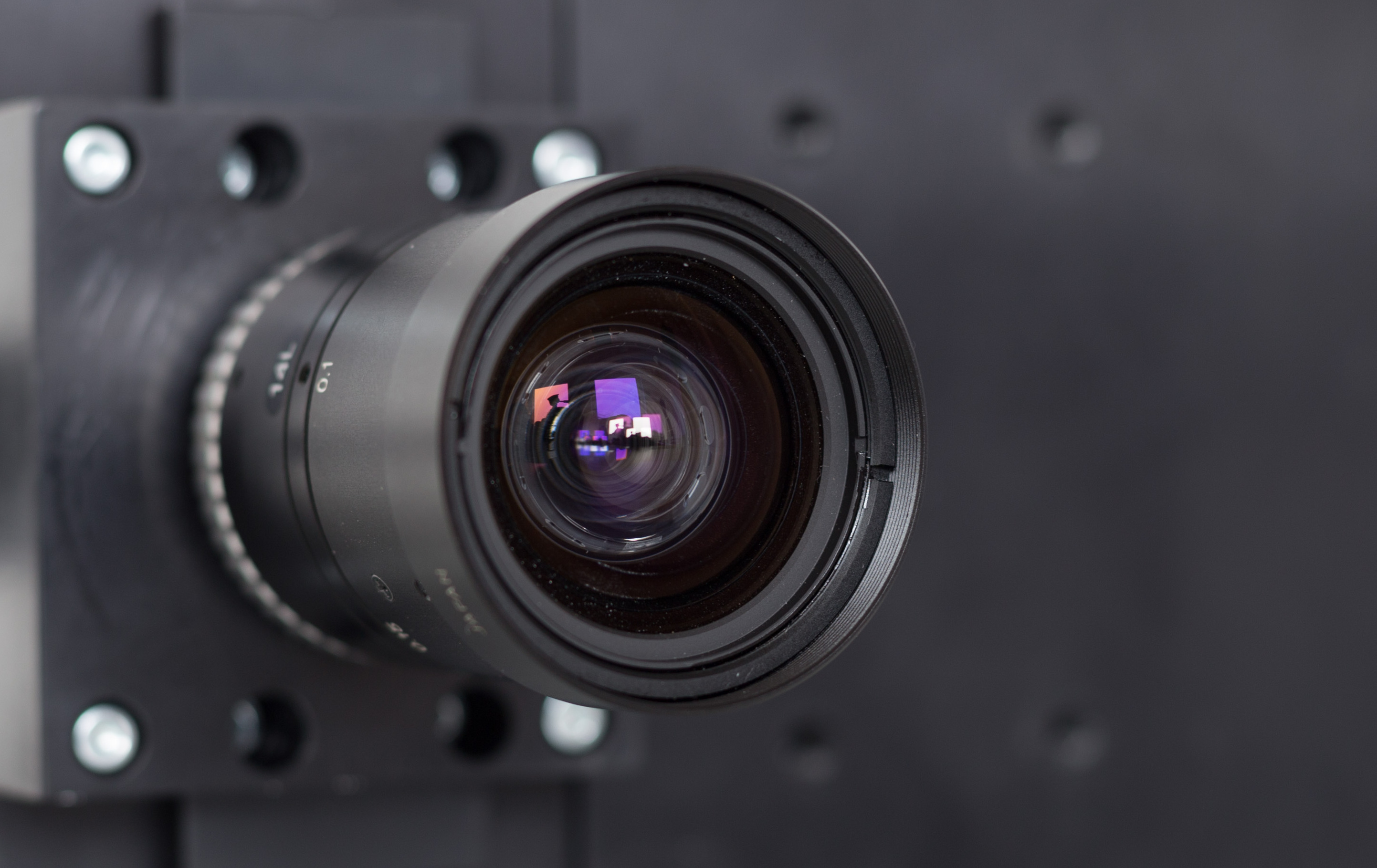

SWIR1700
See beneath the surface...
| Imaging and optical data | Parameters |
|---|---|
| Spectral range | 900 -1700 nm |
| Band size | 800nm |
| Entrance slit width | 25 µm |
| Dispersion/pixel | 1.25 nm/pixel |
| Wavelength resolution FWHM | 2.0 nm |
| Spatial resolution | 510 pixels |
| Spectral resolution | 636 pixels |
| Image frequency | 50 fps | Connection |
| Control | GigE |
| Data | GigE |
| Power | 12V | Sensor |
| Type | InGaAs |
| Size | 16x12.8mm |
| Resolution | 640 x 512 pixels |
| Bit depth | 16 bit |
| Pixel size | 25 µm |
| Lens | |
| F-number | 1.4 |
| View angle | 63° |
| Focal length | 8 mm |
| Focus | manual |
| Physical data | |
| Weight | 5 kg |
| Camera size (L × W × H) | 390 × 108 × 265 mm |
| Operating conditions | |
| Temperature | 10° to 40°C |
| Humidity | 20 to 80% (no condensation) |
